Description
Key Features
- 4 sonar modes in a single transducer, with no additional modules required (Live Forward, Live Down, CHIRP Sonar, DownScan Imaging™ with FishReveal™)
- Live sonar with auto-tuning, featuring focused views both downward and forward

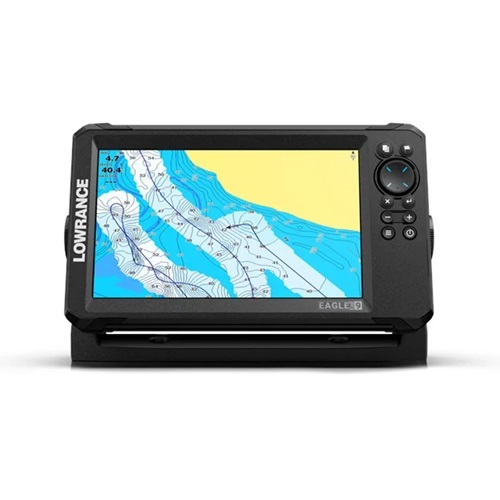

- Detailed C-MAP® cartography with Genesis® Live
- IPS display, viewable from any angle, even with polarized sunglasses
- New reliable twist-lock connector system for easy installation on any boat or kayak
- SD card slot for software updates, Genesis Live recording, and charting add-ons
- See fish hiding among structure and vegetation with FishReveal™ mode
- Enhance contrast and visibility with brand-new color palettes for imaging
- Complete live sonar solution

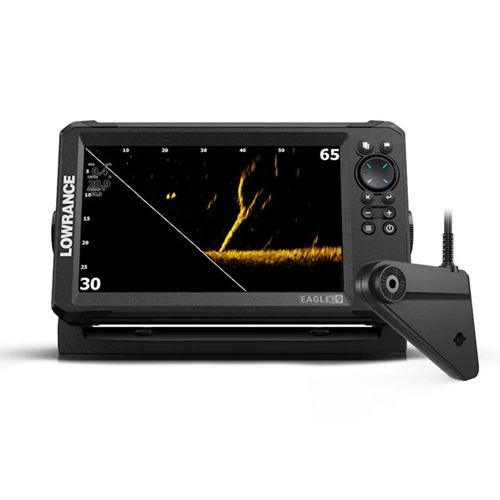

Eagle Eye Transducer with Live Sonar, CHIRP Sonar and DownScan with FishReveal™
Maximum sonar depth/range:
- Live Forward = 200 ft*
- Live Down = 200 ft*
- CHIRP Sonar = 200 ft*
- DownScan = 200 ft*
*Depth and range may vary depending on water conditions, bottom hardness, and target reflectivity.
The Eagle Eye 9 display is not compatible with other transducers such as TripleShot HD or any HDI models.
The sonar hardware integrated in the Eagle Eye 9 has been specifically designed to operate with the Eagle Eye live sonar transducer.
The Eagle Eye 9 features a different sonar connector on the back, with a different pin configuration compared to other Lowrance Eagle series displays.
The Complete Live Sonar Solution
Simple and affordable access to live sonar allows you to observe in real time how fish react to your lure.
Eagle Eye™ delivers the same high-resolution live sonar performance as ActiveTarget® 2, with more focused forward and downward views.
With smooth and consistent imaging, Eagle Eye provides all the details you need to understand the perfect moment to strike.
Maximum Flexibility
High-focus live sonar is combined with CHIRP and DownScan Imaging™ (with FishReveal™) in a single transducer, giving you a true “eagle-eye” view for any type of fishing.
CHIRP SONAR
CHIRP sonar delivers high-resolution images of individual fish targets, even when fish are close to the bottom or tightly grouped in schools.
DOWNSCAN™
DownScan™ Imaging makes it easier to understand the relationship between fish and underwater structure, providing near-photographic images of rocks, trees, and other submerged objects directly beneath your boat.
FISHREVEAL™
Remove all guesswork from fish identification with FishReveal™, which combines DownScan and CHIRP for unmatched target separation and identification.
AUTO-TUNING SONAR
Simple auto-tuning sonar instantly provides optimal settings, so you don’t have to spend time adjusting them manually.
GENESIS LIVE
Know your local waters better than anyone else by creating real-time custom bathymetric maps with ½-foot contours of your lake or uncharted waters.
Technical Specifications
- IPS display, viewable from all angles, even with polarized glasses
- Reliable twist-lock connector system for easy installation on any boat or kayak
- SD card slot for software updates, Genesis Live recording, and charting add-ons
- FishReveal™ mode to detect fish hiding in structure
- Enhanced contrast and visibility with new imaging color palettes
- Warranty: 2 years
- Power supply: 12V DC (10.8–17V DC)
- Waypoints, routes, tracks: 3000 waypoints, 100 routes, 100 trails
- Operating temperature: 5°F to 131°F (-15°C to 55°C)
- Recommended fuse rating: 5A
- Dimensions (H x W x D): 10.81″ (274.7 mm) x 6.39″ (162.5 mm) x 4.54″ (90 mm including bracket)
- Viewing angle: 85° top/bottom, 85° left/right
- Supported charts: C-MAP Discover, C-MAP Genesis Live
- Display resolution: 800 x 480
- Included mapping: C-MAP World Base Map
- Correction: SBAS
- Mounting type: Gimbal bracket, front dash flush mount
- Waterproof rating: IPX7 (with card door closed)
- SD card memory: Micro SD card (max 32 GB)
- Backlight: Pure White LED
- Keypad: 9-way directional keypad (pages, waypoint, exit, enter, zoom, menu, power)
- Languages: European language pack
